High-pressure flat pneumatic hot stamping machine:
Principle
• Hot-press transfer principle: The hot stamping machine mainly works on the principle of hot-press transfer. Under a certain temperature and pressure, the electrochemical aluminum foil is in contact with the hot stamping plate and the substrate. The electric heating plate heats up to make the hot stamping plate have heat. The electrochemical aluminum is heated, and its hot-melt dyeing resin layer and adhesive melt. The adhesion of the dyeing resin layer decreases, and the viscosity of the adhesive increases after melting. The aluminum layer and the electrochemical aluminum base film are peeled off and transferred to the substrate. After the pressure is removed, the adhesive quickly cools and solidifies, and the aluminum layer is firmly attached to the substrate to complete the hot stamping.
• Microcomputer control: The microcomputer control system can accurately set and adjust various parameters in the hot stamping process, such as temperature, pressure, hot stamping time, etc., to ensure that wooden gift boxes, wine boxes, and red wine boxes of different materials and sizes can obtain ideal hot stamping effects, improve the quality and stability of hot stamping, and can store a variety of hot stamping process parameters for easy call and switch.
Structure
• Body frame: Made of solid metal material, it provides stable support for the entire hot stamping machine, ensuring that the body does not deform during high-pressure hot stamping operations, ensuring hot stamping accuracy and equipment life.
• Pneumatic system: It consists of an air compressor, cylinder, pneumatic control valve, etc. The air compressor provides compressed air, which is controlled by the pneumatic control valve to control the cylinder movement, so as to realize the up and down movement of the hot stamping head and provide the pressure required for hot stamping. The pressure can be controlled by adjusting the pneumatic control valve or the air intake of the cylinder.
• Heating system: Usually, heating elements such as electric heating tubes or heating plates are installed under or inside the hot stamping plate. The microcomputer control system controls the power on and off of the heating elements according to the set temperature, so that the hot stamping plate can be quickly and evenly heated to the required temperature, and the temperature is kept stable to ensure that the electrochemical aluminum foil can be well melted and transferred.
• Hot stamping plate and fixing device: The hot stamping plate is made of metal materials such as copper and zinc, and is engraved or corroded according to the hot stamping pattern and text. It is installed under the hot stamping head of the hot stamping machine through fixtures or bolts to ensure that the hot stamping plate fits tightly with the surface of the substrate and the clarity and accuracy of the hot stamping pattern.
• Workbench and positioning device: The workbench is used to place wooden gift boxes and other substrates. The surface is flat and smooth, and there are positioning devices, such as positioning pins, positioning slots or pneumatic clamps, to ensure the accurate position of the substrate during the hot stamping process, prevent it from moving or offsetting, and ensure the position accuracy of the hot stamping pattern.
• Feeding and receiving device: The feeding device can use conveyor belts, rollers or mechanical arms to automatically transport the wooden gift boxes and other substrates to be hot stamped to the hot stamping position of the workbench; the receiving device automatically collects and organizes the hot stamped products to achieve automated production and improve production efficiency.
Pneumatic hot stamping Machine//Structure
Working table
High strength Steel plate , size: 500*650mm.
Stamping Head drive
Pneumatic drive
Foil collecting method
Motor-drive , Collecting time adjustable

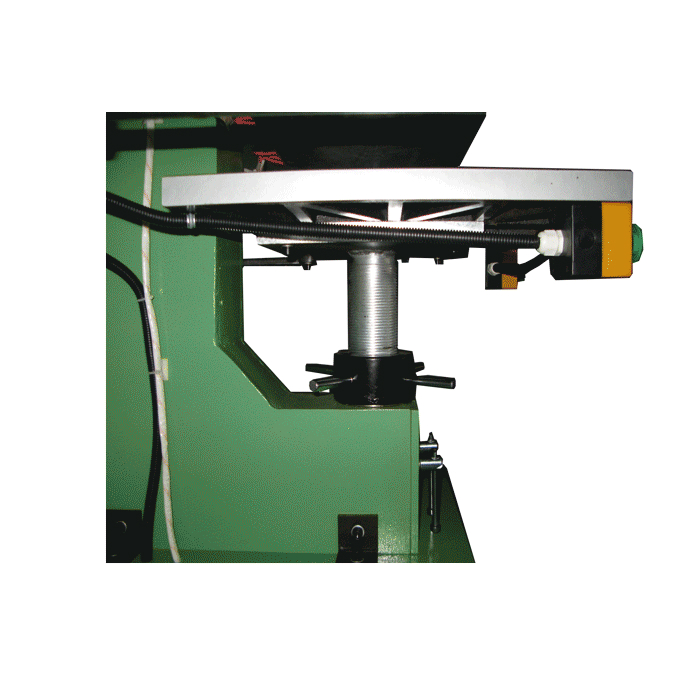

Press adjustment
Up-down of working table
Temperature control
Heating tube heat up，Automatically temperature controlling, temperature free setting
Foil collecting
Motor drive, Automatically collecting
Pneumatic hot stamping machine //Usage and characters
Guide
Gilding - paper, leather, wood, plastic,
Baked - wood products, baked painting, gift box packaging;
Embossing - paper, leather, cloth.
Flat-object stamping machine with large-pressure, Suitable for stamping on invitation letter, card. Leather, wooden gift, Paper package, Plastics film, Electron products;
Manual. Automatic feed foil, automatic temperature controlling ensures stamping quality.
Because of large pressure, It is suitable for gilding and baking Impression on leather, paper, wooden materials.
Pneumatic drive, pressure large.
Application fields
Paper Gilding, Leather Impression, Wood ware Baking
Paper Concave-convex embossing， Cloth hot stamping,
Plastics Bronzing
Mobile screen, Household appliances Panel , Thick paper card, PVC board Etc. large dimension Flat substrate stamping and Bronzing.
Woodiness objects baking-burns and Impress;
Leather bronzing and Molding;
Paper products concavo indentation.
Graduated disc of clock bronzing.
Die-cutting.

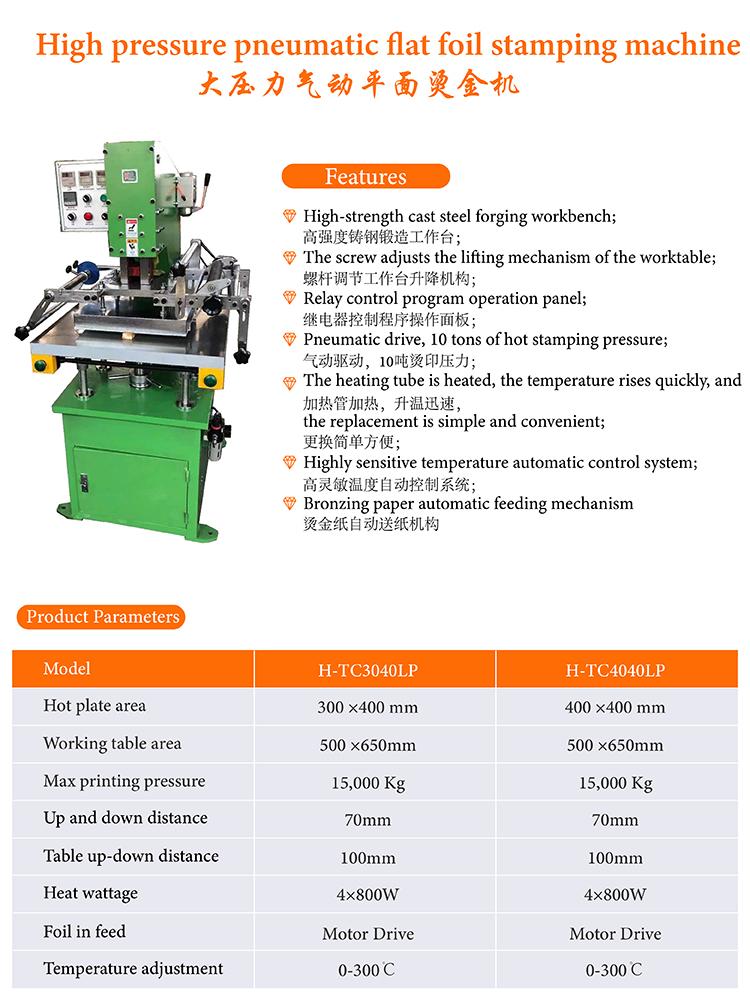

Pneumatic hot stamping Machine //Parameter
Technical parameters
H-TC3040LP
Hot plate area:300 ×400 mm ,
Working table area:500 ×650mm
Max printing pressure:15,000 Kg
Up and down distance:70mm
Table up-down distance: 100mm
Heat wattage: 4×800W
Foil in feed: Motor Drive
Temperature adjustment:0-300oC 。
H-TC4040LP
Hot plate area:400 × 400 mm
Working table area:500 ×650mm
Max printing pressure:15,000 Kg
Up and down distance:70mm
Table up-down distance: 100mm;
Heat wattage: 4×800W
Foil in feed: Motor Drive
Temperature adjustment:0-300oC 。
Works supply
110V-220VPower supply；
5-7Bar compress air
Package list
Package size: 1060*1030*1800mm
Gross weight: 650kg;
CBM: 1.96524
H.S.Code
8443198000
Certificate
CE
Pneumatic hot stamping machine //Advantage
Function
Bench made of high strength cast steel forging, has a very high flatness and stability;
Thread rising institutions to adjust the table lift to facilitate the opening and closing of space according to the height adjustment of the product tipping machine;
Relay control program is running, easy operation, easy maintenance;
Pairs of buttons control the stamping head up and down, security is greatly enhanced;
Pneumatic drive instead of the pneumatic drive, stamping pressure significantly improve the stability is greatly enhanced;
Heating pipe heating, rapid heating, replacement is simple and convenient;
Heating plate can be removed to facilitate installation and replacement gilt template;
Ironing board and table parallelism can be adjusted to facilitate the flexible adjustment depending on the size of the different regions of the pressure;
Automatic temperature control system can be set depending on the product temperature, automatic temperature control; temperature control accuracy of about 5 degrees;
Hot foil stamping degree of time and rolls of time can be set freely according to different technical requirements;
Foil paper automatic document feeder, conveyor length can be set according to the size of the stamping area of freedom.
Application︰
Die-cutting, concave-convex embossing, hot stamping of some non-planar products may require hot stamping machines with a pressure of more than 10 tons. If customers still choose pneumatic hot stamping machines, they must manufacture high-pressure pneumatic hot stamping machines. High-pressure pneumatic hot stamping machines require The hot stamping machine is made of stronger materials, such as forged No. 45 steel or alloy steel, and the rigidity of the fuselage is better. The quality of the pneumatic components of the machine should be further improved. The pressure of the hot stamping machine mainly refers to the pressure formed by the contact between the hot plate and the product after the hot plate is pressed down. After the workbench and the hot plate are in full contact, the pneumatic device should be able to self-lock and pressurize to ensure that the pressure will not decay during the hot pressing process. , Or lead to deformation of some contact parts, these are the difficulties in manufacturing high-pressure pneumatic hot stamping machines. High-pressure hot stamping machine is widely used in plastic frames, plastic frisbees, automobile safety radiator grilles, trash cans, turnover boxes, and wooden boards.
