BA42 Series Roller sublimation heat transfer machine Technical parameter
|
|
Model
|
BA42120
|
BA42170
|
BA42190
|
|
Roller Tape
|
Simple Drum
|
Simple drum
|
Simple drum
|
|
Roller size
|
420*1200mm
|
420*1700mm
|
420*1900mm
|
|
Roller diameter
|
420mm
|
420mm
|
420mm
|
|
Roller surface
|
Coated with Teflon
|
Coated with Teflon
|
Coated with Teflon
|
|
Transfer width
|
1200mm
|
1700mm
|
1900
|
|
Transfer speed
|
120-380m/h
|
120-380m/h
|
120-380m/h
|
|
Diameter of shaft
|
50mm
|
50mm
|
50mm
|
|
Air swelling shaft
|
2
|
2
|
2
|
|
The main machine dim
|
1900*1000*1200
|
2500*1000*1200
|
2640*900*1200
|
|
The work table dim
|
3500*1188*900
|
3500*1888*900
|
3500*2090*900
|
|
Installed dim
|
4500*2500*1200
|
4500*2500*1200
|
|
|
Wooden box size
|
2580*105*1330
|
2580*105*1330
|
|
|
Net weight
|
520kg
|
600kg
|
750kg
|
|
Gross weight
|
550kg
|
650kg
|
800kg
|
|
Blanket size
|
175*2680*8
|
175*2680*8
|
1950*2680*8
|
|
Blanket separation method
|
Manual
|
Manual
|
Manual
|
|
Pressurized cylinder
|
1set
|
1set
|
1set
|
|
Air pressure
|
su80*50
|
su80*50
|
su80*50
|
|
Pressurized way
|
Pneumatic pressure
|
Pneumatic pressure
|
Pneumatic pressure
|
|
Pressure shaft diameter
|
87mm
|
87mm
|
87mm
|
|
Power supply
|
3 phase 380 volts
|
3 phase 380 volts
|
3 phase 380 volts
|
|
Current
|
41a/71a
|
41a/71a
|
40a
|
|
Heating tube and power
|
18*1.5=27kw
|
18*1.5=27kw
|
18*1.5=27kw
|
|
Heating method
|
|
|
|
|
Oil capacity
|
60kg
|
60kg
|
75kg
|
|
Heating temperature
|
260
|
260
|
260
|
|
Conveyor size
|
1680*7050
|
1680*7050
|
1950
|
|
Conveyor belt material
|
PVC
|
PVC
|
PVC
|
|
Glass size
|
1300*940*650 3Piece
|
1300*940*650 3Piece
|
|
|
Total glass size
|
2900*1710
|
2900*1710
|
|
| BA42 Series Roller sublimation heat transfer machine advantage |
- Independent welding table, easy to install and remove;
- Air up the shaft roller, precise tension control, to ensure that the delivery of paper neat;
- Anti-pinch device to ensure safe operation;
- Microcomputer operation panel, simple and reliable;
- High burning point conveyor blankets, flame retardant performance; blanket thickness uniformity, the transfer effect is good;
- Teflon coating heating roller, effectively prevent electrostatic interference in the transfer process, roller temperature is small;
- Roller with internal and external precision turning and grinding, uniform thickness, heat transfer stability;
- Brand thermal oil, heat stable and uniform;
- Adjustable blanket roller rack pressure mechanism, pressure adjustment is simple and convenient;
- Independent pneumatic booster agencies to ensure high - pressure environment transfer, to achieve the transfer of color thousands;
- Brand electrical components, long life, low failure rate;
- latest collector ring signal transmission, high stability and long life;
- PVC conveyor belt, isolation paper reel, ribbon drive shaft speed can be independent and flexible adjustment;
- Independent blanket correction structure;
- Precise temperature control system, the temperature difference in the range of 5 degrees;
- Tension adjustment structure, to ensure that the cloth and paper transfer process of tension balance.
|
|
|
|
|

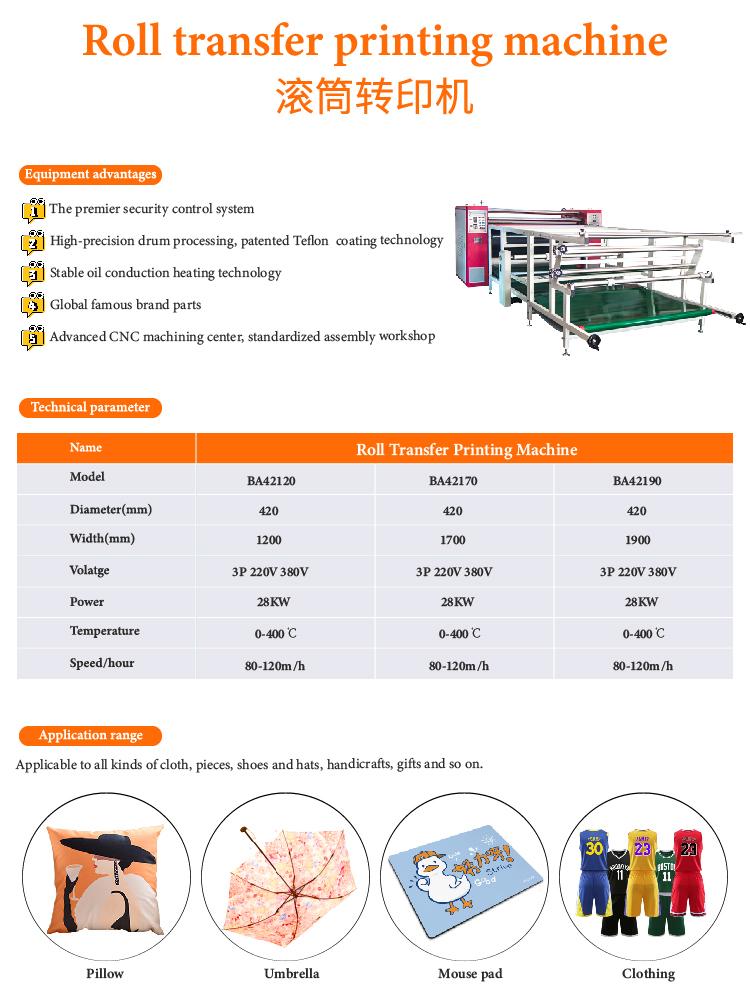

Product Image
|
