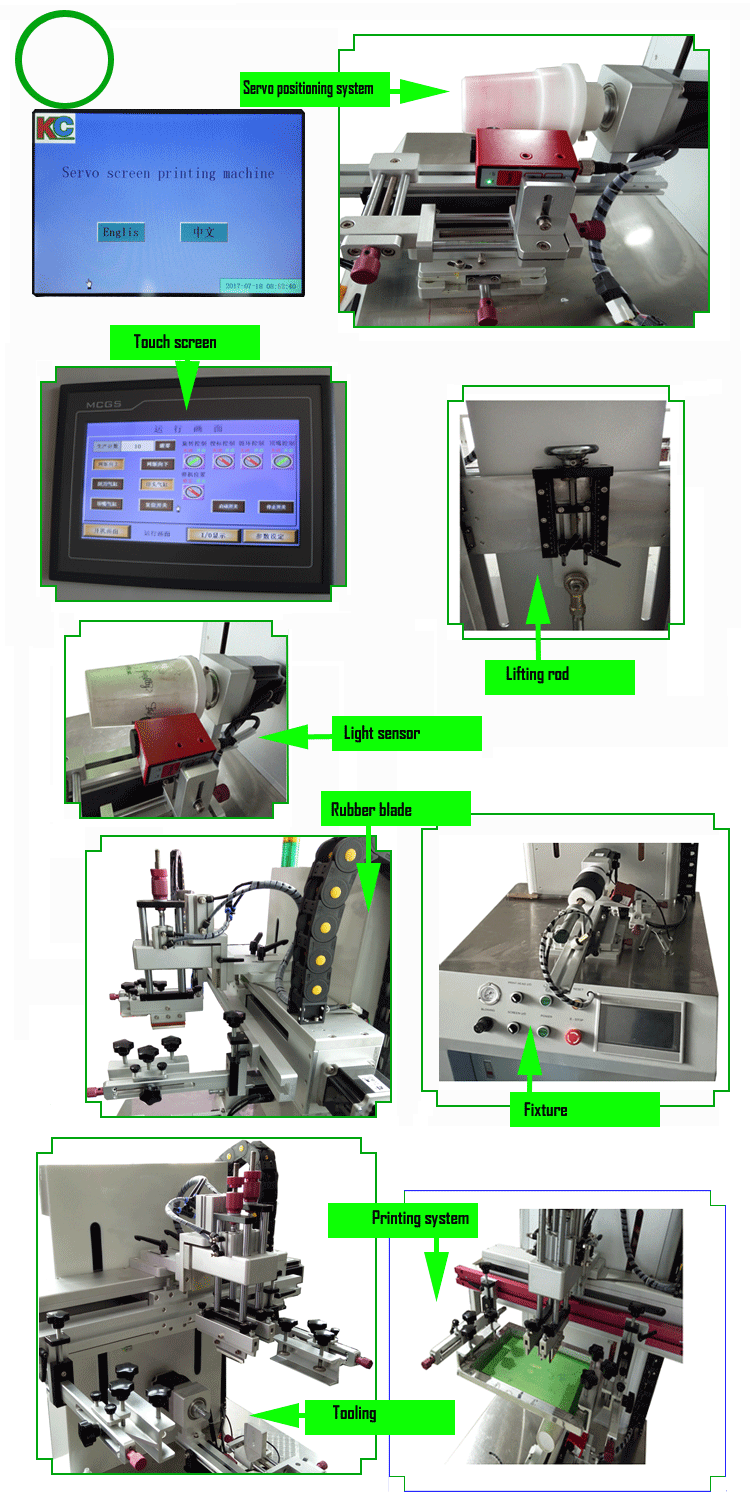

For products that do not have any shape (positioning point, positioning hole, handle, groove, etc.) in the circumferential direction, if multiple colors need to be overprinted, the most common method is to use the first color as an identification feature for overprinting. Such a curved screen printing machine is equipped with a photoelectric tracking system and a servo rotation system. First, the servo rotation system will drive the fixture and the product to rotate. When the photoelectric switch recognizes the characteristics of the first color, it will transmit the photoelectric signal to the central processing unit, and the central processing unit will send the screen printing signal to the screen lowering mechanism. , so as to realize the overprinting of the second color. The servo rotating mechanism will drive the fixture and the product to automatically rotate to the designated position. This screen printing machine is widely used in glass bottles, milk tea cups, disposable plastic cups and some products that are not easy to physically locate.
Choose clamp-type Workbench can be inflatable, or may not be blowing, can be placed all types of round, oval-shaped substrates;
Contact with the substrate , Working table up and down, to facilitate the placement of the substrates and removed;
High Precision axis control. Working table up and down, smooth running, accuracy up to 0.07mm;
High Precision axis control movement. Screen printing pressure is uniform and reliable, the accuracy up to 0.07mm;
Self-balance scraper technology and back blade, to ensure uniformity of ink, ink formation;
Microcomputer control program operations, set up a variety of modes;
Four counts digital LED count, high degree of automation;
Printed Stroke mechanical adjustments, adjust the speed of integrated circuit digital.
Around the screen frame, up and down the emblem of the tune, overlay accuracy, tuning and quick
Application︰
For products that do not have any shape (positioning point, positioning hole, handle, groove, etc.) in the circumferential direction, if multiple colors need to be overprinted, the most common method is to use the first color as an identification feature for overprinting. . Such a curved screen printing machine is equipped with a photoelectric tracking system and a servo rotation system. First, the servo rotation system will drive the fixture and the product to rotate. When the photoelectric switch recognizes the characteristics of the first color, it will transmit the photoelectric signal to the central processing unit, and the central processing unit will send the screen printing signal to the screen lowering mechanism. , so as to realize the overprinting of the second color. The servo rotating mechanism will drive the fixture and the product to automatically rotate to the designated position. This screen printing machine is widely used in glass bottles, milk tea cups, disposable plastic cups and some products that are not easy to physically locate.
